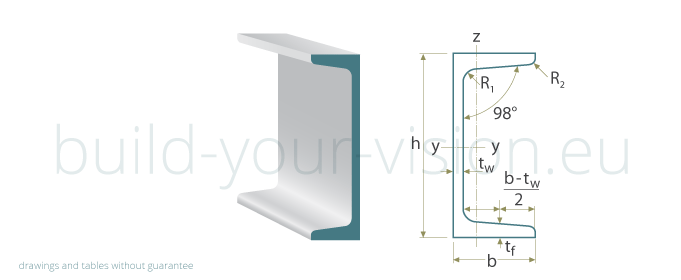

CH Sloping Flange Channel

Japanese CH Sloping Flange Channels
Dimensions: JIS G 3192:2008

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

Designation	Nominal Weight 1m	Dimensions						Area of Section
	G	h	b	t_w	t_f	R₁	R₂	A
	kg/m	mm	mm	mm	mm	mm	mm	cm²

CH 80 x 8	8,23	80	45	5,5	7,5	8,0	4,0	10,5
CH 100 x 10	10,3	100	50	5,9	8,0	8,0	4,5	13,1
CH 120 x 12	12,5	120	55	6,3	8,5	8,0	4,5	16,0
CH 140 x 15	15,0	140	60	6,7	9,0	9,0	4,5	19,2
CH 160 x 18	18,2	160	65	7,2	10,0	9,0	5,5	23,2
CH 180 x 21	21,3	180	70	7,7	10,5	10,0	5,5	27,2
CH 200 x 25	25,2	200	75	8,2	11,5	12,0	6,0	32,1
CH 220 x 29	28,7	220	80	8,7	12,0	12,0	6,5	36,6
CH 250 x 34	33,9	250	85	9,2	13,5	13,5	7,0	43,2
CH 300 x 45	45,2	300	100	10,0	15,0	15,0	8,0	57,5
CH 350 x 52	51,8	350	100	10,5	16,0	16,0	8,0	66,0
CH 400 x 59	58,9	400	100	11,0	17,0	17,0	8,5	75,0

Japanese CH Sloping Flange Channels .dwg/.dxf files Before downloading please read our disclaimer at the top of the page. Downloads and use of any files provided here without any liability and at your own risk. Files provided here should not be used without competent professional examination by a licensed engineer. CAD files were created with nanoCAD 5.
CH 80 x 8	CH 100 x 10	CH 120 x 12	CH 140 x 15
CH 160 x 18	CH 180 x 21	CH 200 x 25	CH 220 x 29
CH 250 x 34	CH 300 x 45	CH 350 x 52	CH 400 x 59
All files were created carefully but it is not possible to exclude all errors. We would be grateful to you, if you inform us about mistakes you might have found. Thank you.
