Channels

Japanese Channels
Dimensions: JIS G 3192:2008

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

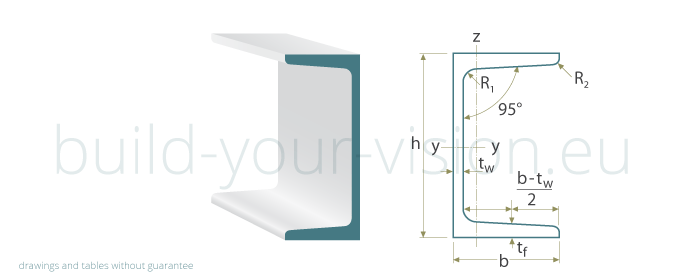

Designation	Nominal Weight 1m	Dimensions						Area of Section
	W	h	b	t_w	t_f	R₁	R₂	A
	kg/m	mm	mm	mm	mm	mm	mm	cm²

75 x 40 x 5	6,92	75	40	5,0	7,0	8	4	8,82

100 x 50 x 5	9,36	100	50	5,0	7,5	8	4	11,92

125 x 65 x 6	13,4	125	65	6,0	8,0	8	4	17,11

150 x 75 x 6,5	18,6	150	75	6,5	10,0	10	5	23,71
150 x 75 x 9	24,0	150	75	9,0	12,5	15	7,5	30,59

180 x 75 x 7	21,4	180	75	7,0	10,5	11	5,5	27,20

200 x 80 x 7,5	24,6	200	80	7,5	11,0	12	6	31,33
200 x 90 x 8	30,3	200	90	8,0	13,5	14	7	38,65

250 x 90 x 9	34,6	250	90	9,0	13,0	14	7	44,07
250 x 90 x 11	40,2	250	90	11,0	14,5	17	8,5	51,17

300 x 90 x 9	38,1	300	90	9,0	13,0	14	7	48,57
300 x 90 x 10	43,8	300	90	10,0	15,5	19	9,5	55,74
300 x 90 x 12	48,6	300	90	12,0	16,0	19	9,5	61,90

380 x 100 x 10,5	54,5	380	100	10,5	16,0	18	9	69,39
380 x 100 x 13	62,0	380	100	13,0	16,5	18	9	78,96
380 x 100 x 13	67,3	380	100	13,0	20,0	24	12	85,71

Japanese Channels .dwg/.dxf files Before downloading please read our disclaimer at the top of the page. Downloads and use of any files provided here without any liability and at your own risk. Files provided here should not be used without competent professional examination by a licensed engineer. CAD files were created with nanoCAD 5.
75 x 40 x 5	100 x 50 x 5	125 x 65 x 6	150 x 75 x 6,5
150 x 75 x 9	180 x 75 x 7	200 x 80 x 7,5	200 x 90 x 8
250 x 90 x 9	250 x 90 x 11	300 x 90 x 9	300 x 90 x 10
300 x 90 x 12	380 x 100 x 10,5	380 x 100 x 13 x 16,5	380 x 100 x 13 x 20
All files were created carefully but it is not possible to exclude all errors. We would be grateful to you, if you inform us about mistakes you might have found. Thank you.
