JPJapanese Sections (hot-rolled)



Equal-Leg Angle

Japanese Equal-Leg Angles
Dimensions: JIS G 3192:2008

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

Designation Material
Thickness		 Nominal
Weight
1m		 Dimensions Area of
Section		 Distance of
Center of
Gravity

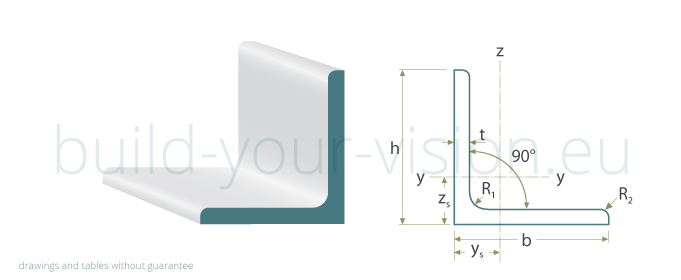

h x b t W h = b R1 R2 A Ys= Zs
  mm kg/m mm mm mm cm2 mm

25 x 25 3 1,12 25 4,0 2,0 1,427 7,19

30 x 30 3 1,36 30 4,0 2,0 1,727 8,44

40 x 40 3 1,83 40 4,5 2,0 2,336 10,90
40 x 40 5 2,95 40 4,5 3,0 3,755 11,70

45 x 45 4 2,74 45 6,5 3,0 3,492 12,40
45 x 45 5 3,38 45 6,5 3,0 4,302 12,80

50 x 50 4 3,06 50 6,5 3,0 3,892 13,70
50 x 50 5 3,77 50 6,5 3,0 4,802 14,10
50 x 50 6 4,43 50 6,5 4,5 5,644 14,40

60 x 60 4 3,68 60 6,5 3,0 4,692 16,10
60 x 60 5 4,55 60 6,5 3,0 5,802 16,60

65 x 65 5 5,00 65 8,5 3,0 6,367 17,70
65 x 65 6 5,91 65 8,5 4,0 7,527 18,10
65 x 65 8 7,66 65 8,5 6,0 9,761 18,80

70 x 70 6 6,38 70 8,5 4,0 8,127 19,30

75 x 75 6 6,85 75 8,5 4,0 8,727 20,60
75 x 75 9 9,96 75 8,5 6,0 12,69 21,70
75 x 75 12 13,00 75 8,5 6,0 16,56 22,90

80 x 80 6 7,32 80 8,5 4,0 9,327 21,80

90 x 90 6 8,28 90 10,0 5,0 10,55 24,20
90 x 90 7 9,59 90 10,0 5,0 12,22 24,60
90 x 90 10 13,30 90 10,0 7,0 17,00 25,70
90 x 90 13 17,00 90 10,0 7,0 21,71 26,90
Designation Material
Thickness		 Nominal
Weight
1m		 Dimensions Area of
Section		 Distance of
Center of
Gravity
h x b t W h = b R1 R2 A Ys= Zs
  mm kg/m mm mm mm cm2 mm

100 x 100 7 10,70 100 10,0 5,0 13,62 27,10
100 x 100 10 14,90 100 10,0 7,0 19,00 28,20
100 x 100 13 19,10 100 10,0 7,0 24,31 29,40

120 x 120 8 14,70 120 12,0 5,0 18,76 32,40

130 x 130 9 17,90 130 12,0 6,0 22,74 35,30
130 x 130 12 23,40 130 12,0 8,5 29,76 36,40
130 x 130 15 28,80 130 12,0 8,5 36,75 37,60

150 x 150 12 27,30 150 14,0 7,0 34,77 41,40
150 x 150 15 33,60 150 14,0 10,0 42,74 42,40
150 x 150 19 41,90 150 14,0 10,0 53,38 44,00

175 x 175 12 31,80 175 15,0 11,0 40,52 47,30
175 x 175 15 39,40 175 15,0 11,0 50,21 48,50

200 x 200 15 45,30 200 17,0 12,0 57,75 54,60
200 x 200 20 59,70 200 17,0 12,0 76,00 56,70
200 x 200 25 73,60 250 17,0 12,0 93,75 58,60

250 x 250 25 93,70 250 24,0 12,0 119,40 71,00
250 x 250 35 128,00 250 24,0 18,0 162,60 74,50
