JPJapanese Sections (hot-rolled)



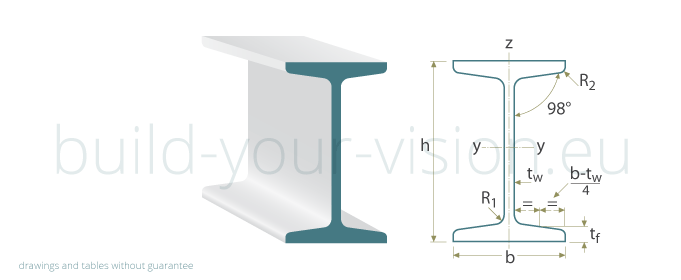

Standard I Section

Japanese standard I sections
Dimensions: JIS G 3192:2008

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

Designation Nominal
Weight
1m		 Dimensions Area of
Section
  W h b tw tf R1 R2 A
  kg/m mm mm mm mm mm mm cm2

100 x 75 12,9 100 75 5,0 8,0 7,0 3,5 16,43

125 x 75 16,1 125 75 5,5 9,5 9,0 4,5 20,45

150 x 75 17,1 150 75 5,5 9,5 9,0 4,5 21,83
150 x 125 36,2 150 125 8,5 14,0 13,0 6,5 46,15

180 x 100 23,6 180 100 6,0 10,0 10,0 5,0 30,06

200 x 100 26,0 200 100 7,0 10,0 10,0 5,0 33,06
200 x 150 50,4 200 150 9,0 16,0 15,0 7,5 64,16

250 x 125 38,3 250 125 7,5 12,5 12,0 6,0 48,79
250 x 125 55,5 250 125 10,0 19,0 21,0 10,5 70,73

300 x 150 48,3 300 150 8,0 13,0 12,0 6,0 61,58
300 x 150 65,5 300 150 10,0 18,5 19,0 9,5 83,47
300 x 150 76,8 300 150 11,5 22,0 23,0 11,5 97,88

350 x 150 58,5 350 150 9,0 15,0 13,0 6,5 74,58
350 x 150 87,2 350 150 12,0 24,0 25,0 12,5 111,1

400 x 150 72,0 400 150 10,0 18,0 17,0 8,5 91,73
400 x 150 95,8 400 150 12,5 25,0 27,0 13,5 122,1

450 x 175 91,7 450 175 11,0 20,0 19,0 9,5 116,8
450 x 175 115,0 450 175 13,0 26,0 27,0 13,5 146,1

600 x 190 133,0 600 190 13,0 25,0 25,0 12,5 169,4
600 x 190 176,0 600 190 16,0 35,0 38,0 19,0 224,5



Japanese Standard I Sections .dwg/.dxf files

Before downloading please read our disclaimer at the top of the page. Downloads and use of any files provided here without any liability and at your own risk. Files provided here should not be used without competent professional examination by a licensed engineer.
CAD files were created with nanoCAD 5.

I 100 x 75

I 125 x 75

I 150 x 75

I 150 x 125

I 180 x 100

I 200 x 100

I 200 x 150

I 250 x 125 x 7,5

I 250 x 125 x 10

I 300 x 150 x 8

I 300 x 150 x 10

I 300 x 150 x 11,5

I 350 x 150 x 9

I 350 x 150 x 12

I 400 x 150 x 10

I 400 x 150 x 12,5

I 450 x 175 x 11

I 450 x 175 x 13

I 600 x 190 x 13

I 600 x 190 x 16

All files were created carefully but it is not possible to exclude all errors.
We would be grateful to you, if you inform us about mistakes you might have found. Thank you.
