Unequal-Leg Angle

Japanese Unequal-Leg Angles
Dimensions: JIS G 3192:2008

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

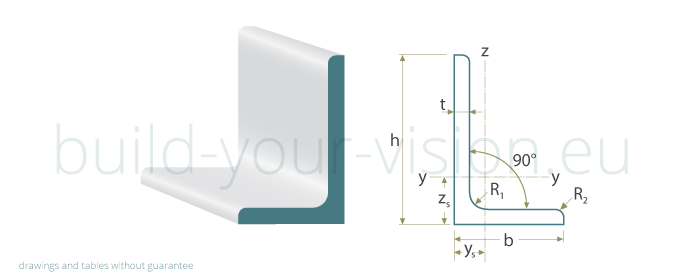

Designation	Material Thickness	Nominal Weight 1m	Dimensions		Area of Section	Distance of Center of Gravity
h x b	t	W	R₁	R₂	A	Z_s	Y_s
	mm	kg/m	mm	mm	cm²	mm	mm

90 x 75	9	11,00	8,5	6,0	14,40	27,5	20,0

100 x 75	7	9,32	10,0	5,0	11,87	30,6	18,3
100 x 75	10	13,00	10,0	7,0	16,50	31,7	19,4

125 x 75	7	10,70	10,0	5,0	13,62	41,0	16,4
125 x 75	10	14,90	10,0	7,0	19,00	42,2	17,5
125 x 75	13	19,10	10,0	7,0	24,31	43,5	18,7
125 x 90	10	16,10	10,0	7,0	20,50	39,5	22,2
125 x 90	13	20,60	10,0	7,0	26,26	40,7	23,4

150 x 90	9	16,40	12,0	6,0	20,94	49,5	19,9
150 x 90	12	21,50	12,0	8,5	27,36	50,7	21,0
150 x 100	9	17,10	12,0	6,0	21,84	47,6	23,0
150 x 100	12	22,40	12,0	8,5	28,56	48,8	24,1
150 x 100	15	27,70	12,0	8,5	35,25	50,0	25,3

Japanese Unequal Leg Angles .dwg/.dxf files Before downloading please read our disclaimer at the top of the page. Downloads and use of any files provided here without any liability and at your own risk. Files provided here should not be used without competent professional examination by a licensed engineer. CAD files were created with nanoCAD 5.
90 x 75 x 9	100 x 75 x 7	100 x 75 x 10	125 x 75 x 7	125 x 75 x 10
125 x 75 x 13	125 x 90 x 10	125 x 90 x 13	150 x 90 x 9	150 x 90 x 12
150 x 100 x 9	150 x 100 x 12	150 x 100 x 12
All files were created carefully but it is not possible to exclude all errors. We would be grateful to you, if you inform us about mistakes you might have found. Thank you.
