Liner Tray

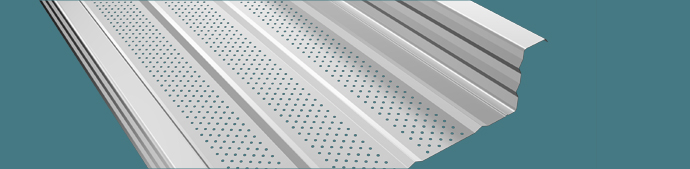

sinusoidal illustration

Liner Tray offers structurally support for the external building envelope. They suit requirements for roof and wall applications and omitting the need for purlins or cladding rails. The shallow profile of the tray pan causes an uncluttered finish to the interior. The pan holds the insulation materials (glass or stone wool). With heights up to 150 mm good heat insulation and thus an economically efficient construction is achievable. For roof constructions the spanning capabilities are less than those of roofing decks. Liner trays can be supplied with perforation to the flat surface if required for acoustic applications.

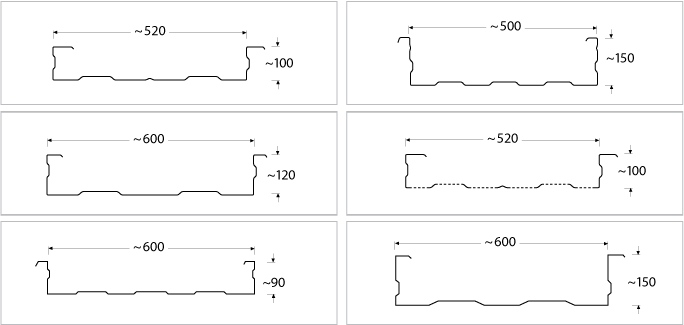

cross-section liner tray

The illustration above shows some example cross-sections.
