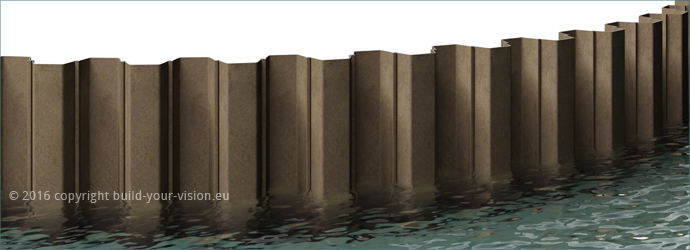

U-Sheet Piles

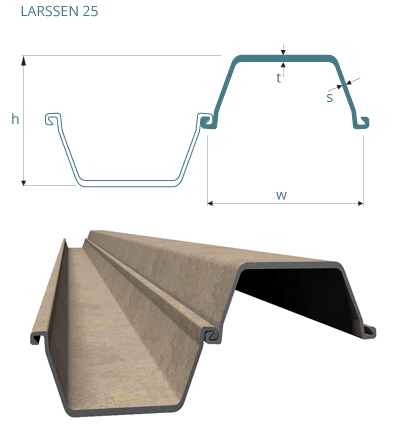

Typical U-Sheet Pile: Larssen 25
Dimensions:
height (h) = 420 mm
width (w) = 500 mm
thickness web (s) = 11.5 mm
thickness flange (t) = 20.0 mm
weight = 103.0 kg/m
Dimensions:
height (h) = 420 mm
width (w) = 500 mm
thickness web (s) = 11.5 mm
thickness flange (t) = 20.0 mm
weight = 103.0 kg/m
Note
This is an example of a hot rolled U pile sheet. Other products of the same series include (amongst others): LARSSEN 755; LARSSEN 703; LARSSEN 704; LARSSEN 600; LARSSEN 601; LARSSEN 602; LARSSEN 603; LARSSEN 604; LARSSEN 605; LARSSEN 628; LARSSEN 23; LARSSEN 24; LARSSEN 25; LARSSEN 43.
For more information please contact: www.tkgftbautechnik.com
*LARSSON is a registered trademark
