Z-Sheet Piles

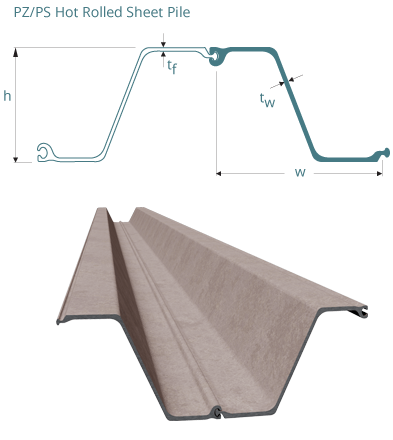

![cross-section pz/ps](files2/piles/q_pz_ps_piles.gif)
Typical Z-Sheet Pile: PZ 35
Dimensions:
height (h) = 378 mm
width (w) = 575 mm
thickness web (tw) = 12.67 mm
thickness flange (tf) = 15.21 mm
weight = 98.2 kg/m
Dimensions:
height (h) = 378 mm
width (w) = 575 mm
thickness web (tw) = 12.67 mm
thickness flange (tf) = 15.21 mm
weight = 98.2 kg/m
Note
This is an example of a hot rolled Z pile sheet. Other products of the same series include: PZ 22; PZ 27; PZ 35; PZ 40.
For more information please contact: www.skylinesteel.com
