RURussian Sections (hot-rolled)

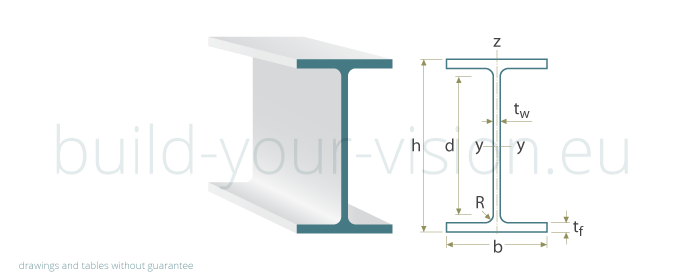

Standard I Beam with Parallel Flanges

Russian standard I beams
Dimensions: GOST 26020-83

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

Designation Nominal
Weight
1m		 Dimensions Area of
Section
  G h b tw tf R1 A
  kg/m mm mm mm mm mm cm2

10Б1 8,1 100,0 55 4,1 5,7 7 10,32

12Б1 8,7 117,6 64 3,8 5,1 7 11,03
12Б2 10,4 120,0 64 4,4 6,3 7 13,21

14Б1 10,5 137,4 73 3,8 5,6 7 13,39
14Б2 12,9 140.0 73 4,7 6,9 7 16,43

16Б1 12,7 157,0 82 4,0 5,9 9 16,18
16Б2 15,8 160,0 82 5,0 7,4 9 20,09

18Б1 15,4 177,0 91 4,3 6,5 9 19,58
18Б2 18,8 180,0 91 5,3 8,0 9 23,95

20Б1 22,4 200,0 100 5,6 8,5 12 28,49

23Б1 25,8 230,0 110 5,6 9,0 12 32,91

26Б1 28,0 258,0 120 5,8 8,5 12 35,62
26Б2 31,2 261,0 120 6,0 10,0 12 39,70

30Б1 32,9 296,0 140 5,8 8,5 15 41,92
30Б2 36,6 299,0 140 6,0 10,0 15 46,67

35Б1 38,9 346,0 155 6,2 8,5 18 49,53
35Б2 43,3 349,0 155 6,5 10,0 18 55,17

40Б1 48,1 392,0 165 7,0 9,5 21 61,25
40Б2 54,7 396,0 165 7,5 11,5 21 69,72

45Б1 59,8 443,0 180 7,8 11,0 21 76,23
45Б2 67,5 447,0 180 8,4 13,0 21 85,96

50Б1 73,0 492,0 200 8,8 12,0 21 92,98
50Б2 80,7 496,0 200 9,2 14,0 21 102,80

55Б1 89,0 543,0 220 9,5 13,5 24 113,37
55Б2 97,9 547,0 220 10,0 15,5 24 124,75

60Б1 106,2 593,0 230 10,5 15,5 24 135,26
60Б2 115,6 597,0 230 11,0 17,5 24 147,30

70Б1 129,3 691,0 260 12,0 15,5 24 164,70
70Б2 144,2 697,0 260 12,5 18,5 24 183,60

80Б1 159,5 791,0 280 13,5 17,0 26 203,20
80Б2 177,9 798,0 280 14,0 20,5 26 226,60

90Б1 194,0 893,0 300 15,0 18,5 30 247,10
90Б2 213,8 900,0 300 15,5 22,0 30 272,40

100Б1 230,6 990,0 320 16,0 21,0 30 293,82
100Б2 258,2 998,0 320 17,0 25,0 30 328,90
100Б3 285,7 1006,0 320 18,0 29,0 30 364,00
100Б4 314,5 1013,0 320 19,5 32,5 30 400,60
