RURussian Sections (hot-rolled)



Wide Flange Beams

Russian wide flange beams
Dimensions: GOST 26020-83

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

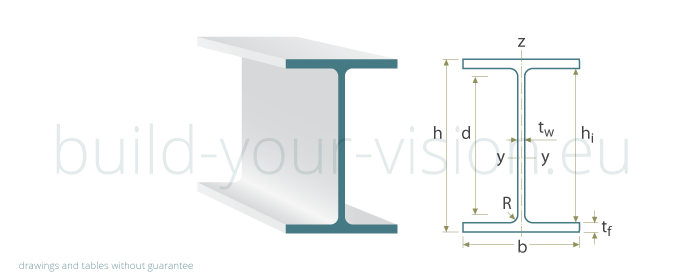

Designation Nominal
Weight
1m		 Dimensions Area of
Section
  G h b tw tf R1 A
  kg/m mm mm mm mm mm cm2

20Ш1 30,6 193 150 6,0 9,0 13 38,95

23Ш1 36,2 226 155 6,5 10,0 14 46,08

26Ш1 42,7 251 180 7,0 10,0 16 54,37
26Ш2 49,2 255 180 7,5 12,0 16 62,73

30Ш1 53,6 291 200 8,0 11,0 18 68,31
30Ш2 61,0 295 200 8,5 13,0 18 77,65
30Ш3 68,3 299 200 9,0 15,0 18 87,00

35Ш1 75,1 338 250 9,5 12,5 20 95,67
35Ш2 82,2 341 250 10,0 14,0 20 104,74
35Ш3 91,3 345 250 10,5 16,0 20 116,30

40Ш1 96,1 388 300 9,5 14,0 22 122,40
40Ш2 111,1 392 300 11,5 16,0 22 141,60
40Ш3 123,4 396 300 12,5 18,0 22 157,20

50Ш1 114,4 484 300 11,0 15,0 26 145,70
50Ш2 138,7 489 300 14,5 17,5 26 176,60
50Ш3 156,4 495 300 15,5 20,5 26 199,20
50Ш4 174,1 501 300 16,5 23,5 26 221,70

60Ш1 142,1 580 320 12,0 17,0 28 181,10
60Ш2 176,9 587 320 16,0 20,5 28 225,30
60ШЗ 205,5 596 320 18,0 24,5 28 261,80
60Ш4 234,2 603 320 20,0 28,5 28 298,34

70Ш1 169,9 683 320 13,5 19,0 30 216,40
70Ш2 197,6 691 320 15,0 23,0 30 251,70
70ШЗ 235,4 700 320 18,0 27,5 30 299,80
70Ш4 261,1 708 320 20,5 31,5 30 341,60
70Ш5 305,9 718 320 23,0 36,5 30 389,70



Wide Flange Beams .dwg/.dxf Files

Before downloading please read our disclaimer at the top of the page. Downloads and use of any files provided here without any liability and at your own risk. Files provided here should not be used without competent professional examination by a licensed engineer.
CAD files were created with nanoCAD 5.

20Ш1 (193 x 150)

23Ш1 (226 x 155)

26Ш1 (251 x 180)

26Ш2 (255 x 180)

30Ш1 (291 x 200)

30Ш2 (295 x 200)

30Ш3 (299 x 200)

35Ш1 (338 x 250)

35Ш2 (341 x 250)

35Ш3 (345 x 250)

40Ш1 (388 x 300)

40Ш2 (392 x 300)

40Ш3 (396 x 300)

50Ш1 (484 x 300)

50Ш2 (489 x 300)

50Ш3 (495 x 300)

50Ш4 (501 x 300)

60Ш1 (580 x 320)

60Ш2 (587 x 320)

60Ш3 (596 x 320)

60Ш4 (603 x 320)

70Ш1 (683 x 320)

70Ш2 (691 x 320)

70Ш3 (700 x 320)

70Ш4 (708 x 320)

70Ш5 (718 x 320)

All files were created carefully but it is not possible to exclude all errors.
We would be grateful to you, if you inform us about mistakes you might have found. Thank you.
