Trapezoidal Sheets Composition

Item: q2a1DF6M_byv

NOTE: Details are taken from the highest resolution available
(see Resolution*). Please click to enlarge.
For more information about resolution see some samples.

Keywords ( searchable )

CATEGORIES:

Profiled and Cladding Product
Trapezoidal Profile
Trapezoidal Sheets Composition

Image Composition: application, complete view, one product type, singular product,

Image Environment: white,

Surface/Material: aluminium, coated, metallic,

Material Thickness: 0.9 - 1.4 mm,

Product Height: 36.0 - 48.0 mm,

Product Width: 1001 - 1300 mm,

Keywords: 0 to 0.8 mm; 1001.0 - 1300.0 mm; 25 to 35 mm; 8 bit; rgb; application; building envelope; coated steel (metallic); composition; detail view; one product type; profiled and cladding product; trapezoidal profile; white, q2a1df6m_byv

Description ( searchable )

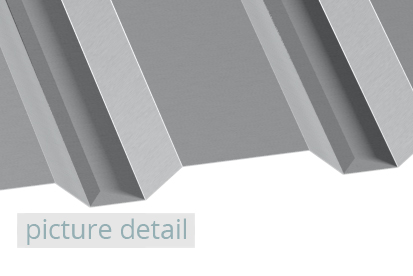

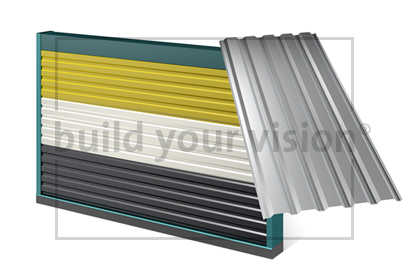

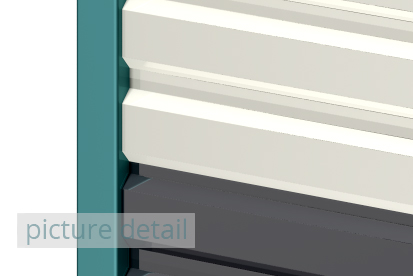

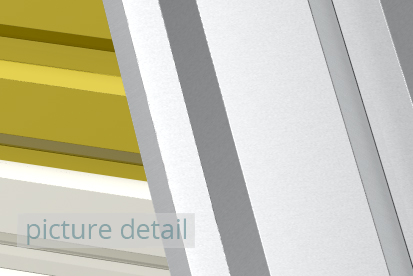

Singular trapezoidal sheet in front of an example wall composition (horizontal application); different colour coatings.
Dimension: ~W1030 x ~H35
Material sheet: brushed aluminium, glossy
Material composition: coated steel sheets; (~RAL9001, ~RAL5021, ~RAL6022)
Fileinfo: 8 Bit, RGB

Similar to the Product(s)
Similar to T 35.1D (Hoesch); Trapez 35/207 (Fischer); SP35/207 (Montana); et al.

Mandatory field Please choose a resolution* Resolution S (600 x 400 px)
equivalent to 2.5 x 1.7 in. size at 240 dpi;
(6.35 x 4.23 cm) Resolution M (800 x 533 px)
equivalent to 3.3 x 2.2 in. size at 240 dpi;
(8.47 x 5.54 cm) Resolution L (1200 x 800 px)
equivalent to 5 x 3.3 in. size at 240 dpi;
(12.7 x 8.47 cm) Resolution XL (2400 x 1600 px)
equivalent to 10 x 6.7 inches size at 240 dpi;
(25.4 x 16.9 cm) Resolution XXL (4000 x 2667 px)
equivalent to 16.7 x 11.1 in. size at 240 dpi;
(42.3 x 28.2 cm)

Price depends on choosen resolution.

From 2.28 €
