UKBritish Sections (hot-rolled)



Asymmetric Beams (ASB)

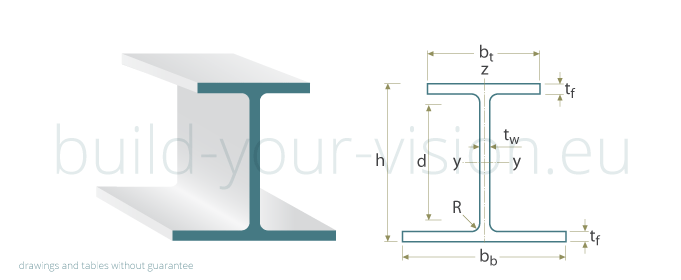

The following table represents UK asymmetric beam steel sections

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

Designation Nominal
Weight
1m		 Height Width top Width
bottom		 Other Dimensions Depth
between
fillets		 Surface
per metre
  G h bt bb tf tw R d
  kg/m mm mm mm mm mm mm mm m2/m

280 ASB 74 73,6 272 175 285 14,0 10,0 24 196 1,40
280 ASB 100 100,0 276 184 294 16,0 19,0 24 196 1,43
280 ASB 105 105,0 288 176 286 22,0 11,0 24 196 1,44
280 ASB 124 124,0 296 178 288 26,0 13,0 24 196 1,46
280 ASB 136 136,0 288 190 300 22,0 25,0 24 196 1,46
300 ASB 153 153,0 310 190 300 24,0 27,0 27 208 1,50
300 ASB 155 155,0 326 179 289 32,0 16,0 27 208 1,51
300 ASB 185 185,0 320 195 305 29,0 32,0 27 208 1,53
300 ASB 196 196,0 342 183 293 40,0 20,0 27 208 1,55
300 ASB 249 249,0 342 203 313 40,0 40,0 27 208 1,59




UK Asymmetric Beams .dwg/.dxf files

Before downloading please read our disclaimer at the top of the page. Downloads and use of any files provided here without any liability and at your own risk. Files provided here should not be used without competent professional examination by a licensed engineer.
CAD files were created with nanoCAD 5.

280 ASB 74

280 ASB 100

280 ASB 105

280 ASB 124

280 ASB 136

300 ASB 153

300 ASB 155

300 ASB 185

300 ASB 196

300 ASB 249

All files were created carefully but it is not possible to exclude all errors.
We would be grateful to you, if you inform us about mistakes you might have found. Thank you.
