UKBritish Sections (hot-rolled)

Joists

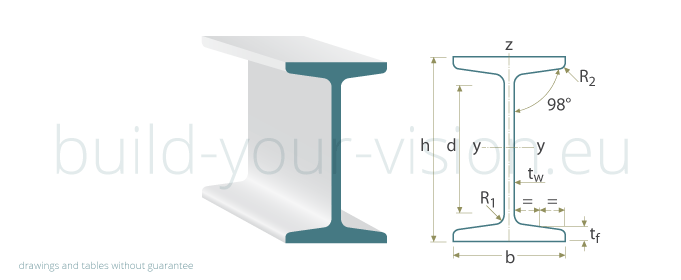

The following table represents UK joist steel sections
Dimensions: BS 4: part 1 2005

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

Designation	Nominal Weight 1m	Dimensions						Area of section
	G	b	h	t_w	t_f	R₁	R₂	A
	kg/m	mm	mm	mm	mm	mm	mm	cm²

J 76 x 76 x 13	12,7	76,2	76,2	5,1	8,4	9,4	4,6	16,2
J 76 x 76 x 15	15,0	80,0	76,2	8,9	8,4	9,4	4,6	19,1
J 89 x 89 x 19	19,5	88,9	88,9	9,5	9,9	11,1	3,2	24,9
J 102 x 44 x 7	7,4	44,5	101,6	4,3	6,1	6,9	3,3	9,5
J 102 x 102 x 23	23,0	101,6	101,6	9,5	10,3	11,1	3,2	29,3
J 114 x 114 x 27	27,0	114,3	114,3	9,5	10,7	14,2	3,2	34,5
J 127 x 76 x 16	16,5	76,2	127,0	5,6	9,6	9,4	4,6	21,1
J 127 x 114 x 27	26,8	114,3	127,0	7,4	11,4	9,9	5,0	34,2
J 127 x 114 x 29	29,3	114,3	127,0	10,2	11,5	9,9	4,8	37,4
J 152 x 127 x 37	37,2	127,0	152,4	10,4	13,2	13,5	6,6	47,5
J 203 x 152 x 52	52,2	152,4	203,2	8,9	16,5	15,5	7,6	66,6
J 254 x 114 x 37	37,1	114,3	254,0	7,6	12,8	12,4	6,1	47,3
J 254 x 203 x 82	82,0	203,2	254,0	10,2	19,9	19,6	9,7	105,0

UK Joist Steel Sections .dwg/.dxf files Before downloading please read our disclaimer at the top of the page. Downloads and use of any files provided here without any liability and at your own risk. Files provided here should not be used without competent professional examination by a licensed engineer. CAD files were created with nanoCAD 5.
Joist 76x76x13	Joist 76x76x15	Joist 89x89x19	Joist 102x44x7	Joist 102x102x23
Joist 114x114x27	Joist 127x76x16	Joist 127x114x27	Joist 127x114x29	Joist 152x127x37
Joist 203x152x52	Joist 254x114x37	Joist 254x203x82
All files were created carefully but it is not possible to exclude all errors. We would be grateful to you, if you inform us about mistakes you might have found. Thank you.
