Parallel Flange Channels (PFC)
The following table represents UK parallel flange channels sections
Dimensions: BS 4-1: 2005
DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

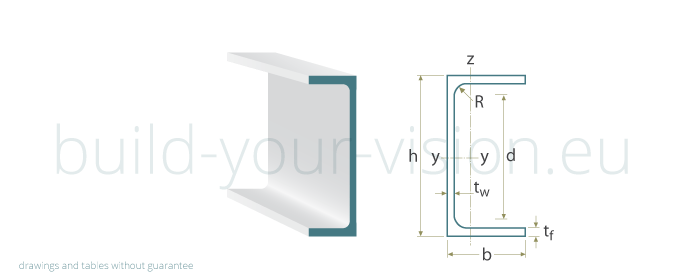

| Designation | Nominal Weight 1m |
Dimension | Surface per metre |
|||||||||||
| G | h | b | tf | tw | R | d | ||||||||
| kg/m | mm | mm | mm | mm | mm | mm | m2/m | |||||||
| 100 x 50 x 10 | 10,2 | 100 | 50 | 8,5 | 5,0 | 9 | 65 | 0,382 | ||||||
| 125 x 65 x 15 | 14,8 | 125 | 65 | 9,5 | 5,5 | 12 | 82 | 0,489 | ||||||
| 150 x 75 x 18 | 17,9 | 150 | 75 | 10,0 | 5,5 | 12 | 106 | 0,579 | ||||||
| 150 x 90 x 24 | 23,9 | 150 | 90 | 12,0 | 6,5 | 12 | 102 | 0,637 | ||||||
| 180 x 75 x 20 | 20,3 | 180 | 75 | 10,5 | 6,0 | 12 | 135 | 0,638 | ||||||
| 180 x 90 x 26 | 26,1 | 180 | 90 | 12,5 | 6,5 | 12 | 131 | 0,697 | ||||||
| 200 x 75 x 23 | 23,4 | 200 | 75 | 12,5 | 6,0 | 12 | 151 | 0,678 | ||||||
| 200 x 90 x 30 | 29,7 | 200 | 90 | 14,0 | 7,0 | 12 | 148 | 0,736 | ||||||
| 230 x 75 x 26 | 25,7 | 230 | 75 | 12,5 | 6,5 | 12 | 181 | 0,737 | ||||||
| 230 x 90 x 32 | 32,2 | 230 | 90 | 14,0 | 7,5 | 12 | 178 | 0,795 | ||||||
| 260 x 75 x 28 | 27,6 | 260 | 75 | 12,0 | 7,0 | 12 | 212 | 0,796 | ||||||
| 260 x 90 x 35 | 34,8 | 260 | 90 | 14,0 | 8,0 | 12 | 208 | 0,854 | ||||||
| 300 x 90 x 41 | 41,4 | 300 | 90 | 15,5 | 9,0 | 12 | 245 | 0,932 | ||||||
| 300 x 100 x 46 | 45,5 | 300 | 100 | 16,5 | 9,0 | 15 | 237 | 0,969 | ||||||
| 380 x 100 x 54 | 54,0 | 380 | 100 | 17,5 | 9,5 | 15 | 315 | 1,128 | ||||||
| 430 x 100 x 64 | 64,4 | 430 | 100 | 19,0 | 11,0 | 15 | 362 | 1,225 | ||||||
UK Parallel Flange Channels .dwg/.dxf filesBefore downloading please read our disclaimer at the top
of the page. Downloads and use of any files provided here without any liability and
at your own risk. Files provided here should not be used without
competent professional examination by a licensed engineer. |
 |
|||||
PFC 100x50x10  | PFC 125x65x15 | PFC 150x75x18 | PFC 150x90x24 | PFC 180x75x20 | ||
PFC 180x90x26 | PFC 200x75x23 | PFC 200x90x30 | PFC 230x75x26 | PFC 230x90x32 | ||
PFC 260x75x28 | PFC 260x90x35 | PFC 300x90x41 | PFC 300x100x46 | PFC 380x100x54 | ||
PFC 430x100x64 | ||||||
All files were created carefully
but it is not possible to exclude all errors. |
||||||
