Universal Bearing Piles (UBP)

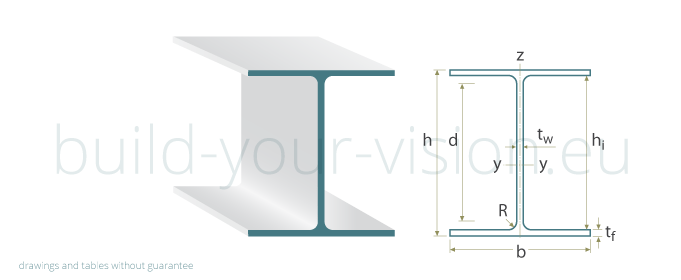

The following table represents UK universal bearing pile steel sections
Dimensions: BS 4-1: 2005
DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.
| Designation | Nominal Weight 1m |
Dimension | Surface per metre |
|||||||||||
| G | h | b | tw | tf | R | d | ||||||||
| kg/m | mm | mm | mm | mm | mm | mm | m2/m | |||||||
| 203 x 203 x 45 | 44,9 | 200,2 | 205,9 | 9,5 | 9,5 | 10,2 | 160,8 | 1,19 | ||||||
| 203 x 203 x 54 | 53,9 | 204,0 | 207,7 | 11,3 | 11,4 | 10,2 | 160,8 | 1,20 | ||||||
| 254 x 254 x 63 | 63,0 | 247,1 | 256,6 | 10,6 | 10,7 | 12,7 | 200,3 | 1,48 | ||||||
| 254 x 254 x 71 | 71,0 | 249,7 | 258,0 | 12,0 | 12,0 | 12,7 | 200,3 | 1,49 | ||||||
| 254 x 254 x 85 | 85,1 | 254,3 | 260,4 | 14,4 | 14,3 | 12,7 | 200,3 | 1,50 | ||||||
| 305 x 305 x 79 | 78,9 | 299,3 | 306,4 | 11,0 | 11,1 | 15,2 | 246,7 | 1,78 | ||||||
| 305 x 305 x 88 | 88,0 | 301,7 | 307,8 | 12,4 | 12,3 | 15,2 | 246,7 | 1,78 | ||||||
| 305 x 305 x 95 | 94,9 | 303,7 | 308,7 | 13,3 | 13,3 | 15,2 | 246,7 | 1,79 | ||||||
| 305 x 305 x 110 | 110,0 | 307,9 | 310,7 | 15,3 | 15,4 | 15,2 | 246,7 | 1,80 | ||||||
| 305 x 305 x 126 | 126,1 | 312,3 | 312,9 | 17,5 | 17,6 | 15,2 | 246,7 | 1,82 | ||||||
| 305 x 305 x 149 | 149,1 | 318,5 | 316,0 | 20,6 | 20,7 | 15,2 | 246,7 | 1,83 | ||||||
| 305 x 305 x 186 | 186,0 | 328,3 | 320,9 | 25,5 | 25,6 | 15,2 | 246,7 | 1,86 | ||||||
| 305 x 305 x 223 | 222,9 | 337,9 | 325,7 | 30,3 | 30,4 | 15,2 | 246,7 | 1,89 | ||||||
| 356 x 368 x 109 | 108,9 | 346,4 | 371,0 | 12,8 | 12,9 | 15,2 | 290,2 | 2,13 | ||||||
| 356 x 368 x 133 | 133,0 | 352,0 | 373,8 | 15,6 | 15,7 | 15,2 | 290,2 | 2,14 | ||||||
| 356 x 368 x 152 | 152,0 | 356,4 | 376,0 | 17,8 | 17,9 | 15,2 | 290,2 | 2,16 | ||||||
| 356 x 368 x 174 | 173,9 | 361,4 | 378,5 | 20,3 | 20,4 | 15,2 | 290,2 | 2,17 | ||||||
