Japanese H sections
Dimensions: JIS G 3192:2005

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

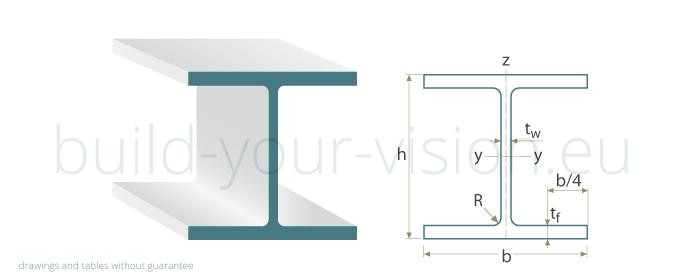

Designation	Nominal Weight 1m	Dimensions					Area of Section
	G	h	b	t_w	t_f	R	A
	kg/m	mm	mm	mm	mm	mm	cm²

H 100 x 50	9,3	100	50	5,0	7,0	8	11,85
H 100 x 100	16,9	100	100	6,0	8,0	8	21,59

H 125 x 60	13,1	125	60	6,0	8,0	8	16,69
H 125 x 125	23,6	125	125	6,5	9,0	8	30,00

H 150 x 75	14,0	150	75	5,0	7,0	8	17,85
H 150 x 100	20,7	148	100	6,0	9,0	8	26,35
H 150 x 150	31,1	150	150	7,0	10,0	8	39,65

H 175 x 90	18,0	175	90	5,0	8,0	8	22,90
H 175 x 175	40,4	175	175	7,5	11,0	13	51,42

H 200 x 100	20,9	200	100	5,5	8,0	8	26,67
H 200 x 150	29,9	194	150	6,0	9,0	8	38,11
H 200 x 200	49,9	200	200	8,0	12,0	13	63,53

H 250 x 125	29,0	250	125	6,0	9,0	8	36,97
H 250 x 175	43,6	244	175	7,0	11,0	13	55,49
H 250 x 250	71,8	250	250	9,0	14,0	13	91,43

H 300 x 150	36,7	300	150	6,5	9,0	13	46,78
H 300 x 200	55,8	294	200	8,0	12,0	13	71,05
H 300 x 300	93,0	300	300	10,0	15,0	13	118,50

H 350 x 175	49,4	350	175	7,0	11,0	13	62,91
H 350 x 250	78,1	340	250	9,0	14,0	13	99,53
H 350 x 350	135,0	350	350	12,0	19,0	13	171,90

H 400 x 200	65,4	400	200	8,0	13,0	13	83,37
H 400 x 300	105,0	390	300	10,0	16,0	13	133,20
H 400 x 400	172,0	400	400	13,0	21,0	22	218,70

H 450 x 200	74,9	450	200	9,0	14,0	13	95,43
H 450 x 300	121,0	440	300	11,0	18,0	13	153,90

H 500 x 200	88,2	500	200	10,0	16,0	13	112,20
H 500 x 300	125,0	488	300	11,0	18,0	13	159,20

H 600 x 200	103,0	600	200	11,0	17,0	13	131,70
H 600 x 300	147,0	588	300	12,0	20,0	13	187,20

H 700 x 300	182,0	700	300	13,0	24,0	18	231,50

H 800 x 300	207,0	800	300	14,0	26,0	18	263,50

H 900 x 300	240,0	900	300	16,0	28,0	18	305,80
