EUEU-Sections (hot-rolled)
Bulb Flats

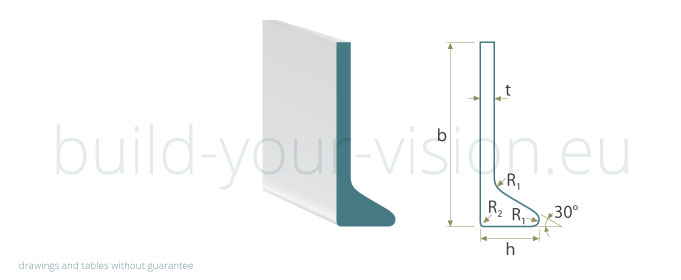

Properties of Bulb Flat for Shipbuilding
Dimensions: EN 10067:1997
![](files/categories/sections_2016/eu_bulbflats_q.gif)
DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.
Designation | Nominal Weight 1m |
Dimensions | Area of Section |
||||
W | b | t | h | R1 | R2 | A | |
kg/m | mm | mm | mm | mm | mm | cm2 | |
HP 80 × 5 | 4,25 | 80 | 5 | 19,0 | 4,0 | ≤ 1,5 | 5,41 |
HP 80 × 6 | 4,88 | 80 | 6 | 20,0 | 4,0 | ≤ 2 | 6,21 |
HP 100 × 7 | 6,86 | 100 | 7 | 22,5 | 4,5 | ≤ 2 | 8,74 |
HP 100 × 8 | 7,65 | 100 | 8 | 23,5 | 4,5 | ≤ 2 | 9,74 |
HP 120 × 6 | 7,32 | 120 | 6 | 23,0 | 5,0 | ≤ 2 | 9,32 |
HP 120 × 7 | 8,26 | 120 | 7 | 24,0 | 5,0 | ≤ 2 | 10,52 |
HP 120 × 8 | 9,2 | 120 | 8 | 25,0 | 5,0 | ≤ 2 | 11,72 |
HP 140 × 7 | 9,75 | 140 | 7 | 26,0 | 5,5 | ≤ 2 | 14,43 |
HP 140 × 8 | 10,85 | 140 | 8 | 27,0 | 5,5 | ≤ 2 | 12,83 |
HP 140 × 9 | 11,93 | 140 | 9 | 28,0 | 5,5 | ≤ 2 | 15,20 |
HP 140 × 10 | 13,05 | 140 | 10 | 29,0 | 5,5 | ≤ 3 | 16,63 |
HP 160 × 7 | 11,46 | 160 | 7 | 29,0 | 6,0 | ≤ 2 | 14,60 |
HP 160 × 8 | 12,72 | 160 | 8 | 30,0 | 6,0 | ≤ 2 | 16,20 |
HP 160 × 9 | 13,97 | 160 | 9 | 31,0 | 6,0 | ≤ 2 | 17,80 |
HP 160 × 11 | 16,49 | 160 | 11 | 33,0 | 6,0 | ≤ 3 | 21,00 |
HP 180 × 8 | 14,8 | 180 | 8 | 33,0 | 7,0 | ≤ 2 | 18,86 |
HP 180 × 9 | 16,22 | 180 | 9 | 34,0 | 7,0 | ≤ 2 | 20,66 |
HP 180 × 10 | 17,63 | 180 | 10 | 35,0 | 7,0 | ≤ 3 | 22,46 |
HP 180 × 11 | 19,04 | 180 | 11 | 36,0 | 7,0 | ≤ 3 | 24,26 |
HP 200 × 9 | 18,57 | 200 | 9 | 37,0 | 8,0 | ≤ 2 | 23,66 |
HP 200 × 10 | 20,14 | 200 | 10 | 38,0 | 8,0 | ≤ 3 | 25,66 |
HP 200 × 11 | 21,71 | 200 | 11 | 39,0 | 8,0 | ≤ 3 | 27,66 |
HP 200 × 12 | 23,28 | 200 | 12 | 40,0 | 8,0 | ≤ 3 | 29,66 |
Designation | Nominal Weight 1m |
Dimensions | Area of Section |
||||
W | b | t | h | R1 | R2 | A | |
kg/m | mm | mm | mm | mm | mm | cm2 | |
HP 220 × 10 | 22,77 | 220 | 10 | 41,0 | 9,0 | ≤ 3 | 29,00 |
HP 220 × 11 | 24,5 | 220 | 11 | 42,0 | 9,0 | ≤ 3 | 31,20 |
HP 220 × 12 | 26,22 | 220 | 12 | 43,0 | 9,0 | ≤ 3 | 33,40 |
HP 240 × 10 | 25,5 | 240 | 10 | 44,0 | 10,0 | ≤ 3 | 32,49 |
HP 240 × 11 | 27,39 | 240 | 11 | 45,0 | 10,0 | ≤ 3 | 34,89 |
HP 240 × 12 | 29,27 | 240 | 12 | 46,0 | 10,0 | ≤ 3 | 37,29 |
HP 260 × 10 | 28,35 | 260 | 10 | 47,0 | 11,0 | ≤ 3 | 36,11 |
HP 260 × 11 | 30,39 | 260 | 11 | 48,0 | 11,0 | ≤ 3 | 38,71 |
HP 260 × 12 | 32,43 | 260 | 12 | 49,0 | 11,0 | ≤ 3 | 41,31 |
HP 260 × 13 | 34,43 | 260 | 13 | 50,0 | 11,0 | ≤ 3 | 43,85 |
HP 280 × 11 | 33,5 | 280 | 11 | 51,0 | 12,0 | ≤ 3 | 42,68 |
HP 280 × 12 | 35,7 | 280 | 12 | 52,0 | 12,0 | ≤ 3 | 45,48 |
HP 280 × 13 | 37,9 | 280 | 13 | 53,0 | 12,0 | ≤ 3 | 48,28 |
HP 300 × 11 | 36,7 | 300 | 11 | 54,0 | 13,0 | ≤ 3 | 46,78 |
HP 300 × 12 | 39,09 | 300 | 12 | 55,0 | 13,0 | ≤ 3 | 49,79 |
HP 300 × 13 | 41,44 | 300 | 13 | 56,0 | 13,0 | ≤ 3 | 52,79 |
HP 320 × 12 | 42,6 | 320 | 12 | 58,0 | 14,0 | ≤ 3 | 54,25 |
HP 320 × 13 | 45,09 | 320 | 13 | 59,0 | 14,0 | ≤ 3 | 57,25 |
HP 320 × 14 | 47,6 | 320 | 14 | 60,0 | 14,0 | ≤ 4 | 60,85 |
HP 340 × 12 | 46,2 | 340 | 12 | 61,0 | 15,0 | ≤ 3 | 58,84 |
HP 340 × 13 | 48,86 | 340 | 13 | 62,0 | 15,0 | ≤ 3 | 62,24 |
HP 340 × 14 | 51,5 | 340 | 14 | 63,0 | 15,0 | ≤ 4 | 65,54 |
HP 370 × 13 | 54,7 | 370 | 13 | 66,5 | 16,5 | ≤ 3 | 69,70 |
HP 370 × 14 | 57,6 | 370 | 14 | 67,5 | 16,5 | ≤ 4 | 73,40 |
HP 370 × 15 | 60,5 | 370 | 15 | 68,5 | 16,5 | ≤ 4 | 77,10 |
Designation | Nominal Weight 1m |
Dimensions | Area of Section |
||||
W | b | t | h | R1 | R2 | A | |
kg/m | mm | mm | mm | mm | mm | cm2 | |
HP 400 × 14 | 63,96 | 400 | 14 | 72,0 | 18,0 | ≤ 4 | 81,48 |
HP 400 × 15 | 67,1 | 400 | 15 | 73,0 | 18,0 | ≤ 4 | 85,48 |
HP 400 × 16 | 70,2 | 400 | 16 | 74,0 | 18,0 | ≤ 4 | 89,48 |
HP 430 × 14 | 70,6 | 430 | 14 | 76,5 | 19,5 | ≤ 4 | 89,70 |
HP 430 × 15 | 73,9 | 430 | 15 | 77,5 | 19,5 | ≤ 4 | 94,19 |
HP 430 × 17 | 80,7 | 430 | 17 | 79,5 | 19,5 | ≤ 4 | 102,79 |
HP 430 × 19 | 87,4 | 430 | 19 | 81,5 | 19,5 | ≤ 4 | 111,39 |
HP 430 × 20 | 90,8 | 430 | 20 | 82,5 | 19,5 | ≤ 4 | 115,00 |
