HEB Section

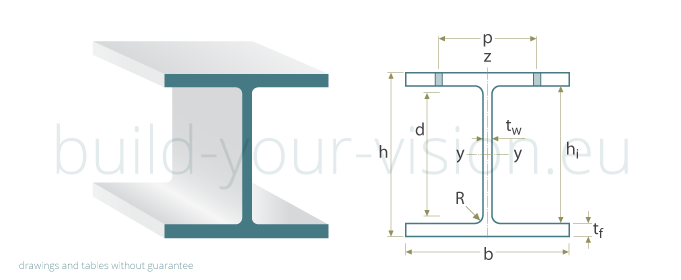

The following table represents European wide flange HEB beams.
Dimensions: EURONORM 53-62
Tolerances: EN 10034: 1993
Surface Conditions: EN 10163-3

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

Designation Nominal
Weight
1m		 Dimensions Cross-
section
Area		 Surface Dimension for Detailing
  W b h tw tf R A AL AG hi d ∅ pmin pmax
  kg/m mm mm mm mm mm cm2 m2/m m2/t mm mm   mm mm
HEB 100 20,4 100 100 6 10 12 26,0 0,567 27,76 80 56 M10 56 58
HEB 120 26,7 120 120 6,5 11 12 34,0 0,686 25,71 98 74 M12 60 68
HEB 140 33,7 140 140 7 12 12 43,0 0,805 23,88 116 92 M16 66 76
HEB 160 42,6 160 160 8 13 15 54,3 0,918 21,56 134 104 M20 80 84
HEB 180 51,2 180 180 8,5 14 15 65,3 1,037 20,25 152 122 M24 88 92
HEB 200 61,3 200 200 9 15 18 78,1 1,151 18,78 170 134 M27 100 100
HEB 220 71,5 220 220 9,5 16 18 91,0 1,270 17,77 188 152 M27 100 118
HEB 240 83,2 240 240 10 17 21 106,0 1,384 16,63 206 164 M27 108 138
HEB 260 93 260 260 10 17,5 24 118,4 1,499 16,12 225 177 M27 114 158
HEB 280 103 280 280 10,5 18 24 131,4 1,618 15,69 244 196 M27 114 178
HEB 300 117 300 300 11 19 27 149,1 1,732 14,80 262 208 M27 120 198
HEB 320 127 300 320 11,5 20,5 27 161,3 1,771 13,98 279 225 M27 122 198
HEB 340 134 300 340 12 21,5 27 170,9 1,810 13,49 297 243 M27 122 198
HEB 360 142 300 360 12,5 22,5 27 180,6 1,849 13,04 315 261 M27 122 198
HEB 400 155 300 400 13,5 24 27 197,8 1,927 12,41 352 298 M27 124 198
HEB 450 171 300 450 14 26 27 218,0 2,026 11,84 398 344 M27 124 198
HEB 500 187 300 500 14,5 28 27 238,6 2,125 11,34 444 390 M27 124 198
HEB 550 199 300 550 15 29 27 254,1 2,224 11,15 492 438 M27 124 198
HEB 600 212 300 600 15,5 30 27 270,0 2,323 10,96 540 486 M27 126 198
HEB 650 225 300 650 16 31 27 286,3 2,422 10,77 588 534 M27 126 198
HEB 700 241 300 700 17 32 27 306,4 2,520 10,48 636 582 M27 126 198
HEB 800 262 300 800 17,5 33 30 334,2 2,713 10,34 734 674 M27 134 198
HEB 900 291 300 900 18,5 35 30 371,3 2,911 9,99 830 770 M27 134 198
HEB 1000 314 300 1000 19 36 30 400,0 3,110 9,90 928 868 M27 134 198




HEB Section .dwg/.dxf files
