HEA Section

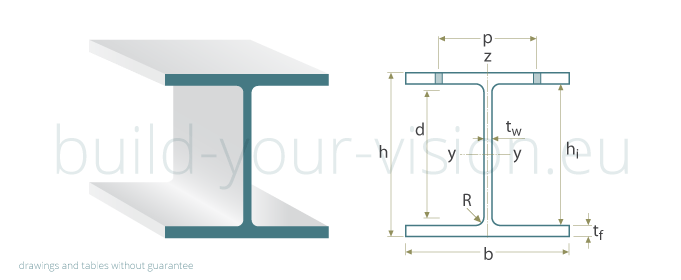

The following table represents European wide flange HEA beams.
Dimensions: EURONORM 53-62
Tolerances: EN 10034: 1993
Surface Conditions: EN 10163-3

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

Designation	Nominal Weight 1m	Dimensions					Cross- section Area	Surface		Dimension for Detailing
	W	b	h	t_w	t_f	R	A	A_L	A_G	h_i	d	∅	p_min	p_max
	kg/m	mm	mm	mm	mm	mm	cm²	m²/m	m²/t	mm	mm		mm	mm
HEA 100	16,7	100	96	5	8	12	21,2	0,561	33,68	80	56	M10	54	58
HEA 120	19,9	120	114	5	8	12	25,3	0,677	34,06	98	74	M 12	58	68
HEA 140	24,7	140	133	5,5	8,5	12	31,4	0,794	32,21	116	92	M 16	64	76
HEA 160	30,4	160	152	6	9	15	38,8	0,906	29,78	134	104	M 20	78	84
HEA 180	35,5	180	171	6	9,5	15	45,3	1,024	28,83	152	122	M 24	86	92
HEA 200	42,3	200	190	6,5	10	18	53,8	1,136	26,89	170	134	M 27	98	100
HEA 220	50,5	220	210	7	11	18	64,3	1,255	24,85	188	152	M 27	98	118
HEA 240	60,3	240	230	7,5	12	21	76,8	1,369	22,70	206	164	M 27	104	138
HEA 260	68,2	260	250	7,5	12,5	24	86,8	1,484	21,77	225	177	M 27	110	158
HEA 280	76,4	280	270	8	13	24	97,3	1,603	20,99	244	196	M 27	112	178
HEA 300	88,3	300	290	8,5	14	27	112,5	1,717	19,43	262	208	M 27	118	198
HEA 320	97,6	300	310	9	15,5	27	124,4	1,756	17,98	279	225	M 27	118	198
HEA 340	105	300	330	9,5	16,5	27	133,5	1,795	17,13	297	243	M 27	118	198
HEA 360	112	300	350	10	17,5	27	142,8	1,834	16,36	315	261	M 27	120	198
HEA 400	125	300	390	11	19	27	159,0	1,912	15,32	352	298	M 27	120	198
HEA 450	140	300	440	11,5	21	27	178,0	2,011	14,39	398	344	M 27	122	198
HEA 500	155	300	490	12	23	27	197,5	2,110	13,60	444	390	M 27	122	198
HEA 550	166	300	540	12,5	24	27	211,8	2,209	13,29	492	438	M 27	122	198
HEA 600	178	300	590	13	25	27	226,5	2,308	12,98	540	486	M 27	122	198
HEA 650	190	300	640	13,5	26	27	241,6	2,407	12,69	588	534	M 27	124	198
HEA 700	204	300	690	14,5	27	27	260,5	2,505	12,25	636	582	M 27	124	198
HEA 800	224	300	790	15	28	30	285,8	2,698	12,03	734	674	M 27	130	198
HEA 900	252	300	890	16	30	30	320,5	2,896	11,51	830	770	M 27	132	198
HEA 1000	272	300	990	16,5	31	30	346,8	3,095	11,37	928	868	M 27	132	198

HEA Section .dwg/.dxf files Before downloading please read our disclaimer at the top of the page. Downloads and use of any files provided here without any liability and at your own risk. Files provided here should not be used without competent professional examination by a licensed engineer. CAD files were created with nanoCAD 5.
HEA 100	HEA 120	HEA 140	HEA 160	HEA 180	HEA 200	HEA 220
HEA 240	HEA 260	HEA 280	HEA 300	HEA 320	HEA 340	HEA 360
HEA 400	HEA 450	HEA 500	HEA 550	HEA 600	HEA 650	HEA 700
HEA 800	HEA 900	HEA 1000
All files were created carefully but it is not possible to exclude all errors. We would be grateful to you, if you inform us about mistakes you might have found. Thank you.
