HEM Section
The following table represents European wide flange HEM beams.
Dimensions: EURONORM 53-62
Tolerances: EN 10034: 1993
Surface Conditions: EN 10163-3
DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

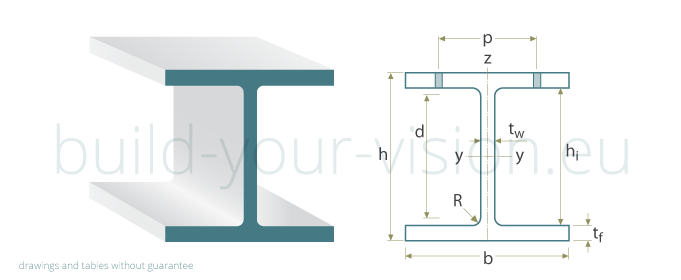

| Designation | Nominal Weight 1m |
Dimensions | Cross- section Area |
Surface | Dimension for Detailing | |||||||||
| W | b | h | tw | tf | R | A | AL | AG | hi | d | ∅ | pmin | pmax | |
| kg/m | mm | mm | mm | mm | mm | cm2 | m2/m | m2/t | mm | mm | mm | mm | ||
| HEM 100 | 41,8 | 106 | 120 | 12 | 20 | 12 | 53,2 | 0,619 | 14,82 | 80 | 56 | M 10 | 62 | 64 |
| HEM 120 | 52,1 | 126 | 140 | 12,5 | 21 | 12 | 66,4 | 0,738 | 14,16 | 98 | 74 | M 12 | 66 | 74 |
| HEM 140 | 63,2 | 146 | 160 | 13 | 22 | 12 | 80,6 | 0,857 | 13,56 | 116 | 92 | M 16 | 72 | 82 |
| HEM 160 | 76,2 | 166 | 180 | 14 | 23 | 15 | 97,1 | 0,970 | 12,74 | 134 | 104 | M 20 | 86 | 90 |
| HEM 180 | 88,9 | 186 | 200 | 14,5 | 24 | 15 | 113,3 | 1,089 | 12,25 | 152 | 122 | M 24 | 94 | 98 |
| HEM 200 | 103 | 206 | 220 | 15 | 25 | 18 | 131,3 | 1,203 | 11,67 | 170 | 134 | M 27 | 106 | 106 |
| HEM 220 | 117 | 226 | 240 | 15,5 | 26 | 18 | 149,4 | 1,322 | 11,27 | 188 | 152 | M27 | 108 | 124 |
| HEM 240 | 157 | 248 | 270 | 18 | 32 | 21 | 199,6 | 1,460 | 9,318 | 206 | 164 | M 27 | 116 | 146 |
| HEM 260 | 172 | 268 | 290 | 18 | 32,5 | 24 | 219,6 | 1,575 | 9,133 | 225 | 177 | M 27 | 122 | 166 |
| HEM 280 | 189 | 288 | 310 | 18,5 | 33 | 24 | 240,2 | 1,694 | 8,984 | 244 | 196 | M 27 | 122 | 186 |
| HEM 300 | 238 | 310 | 340 | 21 | 39 | 27 | 303,1 | 1,832 | 7,699 | 262 | 208 | M 27 | 132 | 208 |
| HEM 320 | 245 | 309 | 359 | 21 | 40 | 27 | 312,0 | 1,866 | 7,616 | 279 | 225 | M 27 | 132 | 204 |
| HEM 340 | 248 | 309 | 377 | 21 | 40 | 27 | 315,8 | 1,902 | 7,670 | 297 | 243 | M 27 | 132 | 204 |
| HEM 360 | 250 | 308 | 395 | 21 | 40 | 27 | 318,8 | 1,934 | 7,730 | 315 | 261 | M 27 | 132 | 204 |
| HEM 400 | 256 | 307 | 432 | 21 | 40 | 27 | 325,8 | 2,004 | 7,835 | 352 | 298 | M 27 | 132 | 202 |
| HEM 450 | 263 | 307 | 478 | 21 | 40 | 27 | 335,4 | 2,096 | 7,959 | 398 | 344 | M 27 | 132 | 202 |
| HEM 500 | 270 | 306 | 524 | 21 | 40 | 27 | 344,3 | 2,184 | 8,079 | 444 | 390 | M 27 | 132 | 202 |
| HEM 550 | 278 | 306 | 572 | 21 | 40 | 27 | 354,4 | 2,280 | 8,195 | 492 | 438 | M 27 | 132 | 202 |
| HEM 600 | 285 | 305 | 620 | 21 | 40 | 27 | 363,7 | 2,372 | 8,308 | 540 | 486 | M 27 | 132 | 200 |
| HEM 650 | 293 | 305 | 668 | 21 | 40 | 27 | 373,7 | 2,468 | 8,411 | 588 | 534 | M 27 | 132 | 200 |
| HEM 700 | 301 | 304 | 716 | 21 | 40 | 27 | 383,0 | 2,560 | 8,513 | 636 | 582 | M 27 | 132 | 200 |
| HEM 800 | 317 | 303 | 814 | 21 | 40 | 30 | 404,3 | 2,746 | 8,655 | 734 | 674 | M 27 | 138 | 198 |
| HEM 900 | 333 | 302 | 910 | 21 | 40 | 30 | 423,6 | 2,934 | 8,824 | 830 | 770 | M 27 | 138 | 198 |
| HEM 1000 | 349 | 302 | 1008 | 21 | 40 | 30 | 444,2 | 3,130 | 8,978 | 928 | 868 | M 27 | 138 | 198 |
HEM Section .dwg/.dxf filesBefore downloading please read our disclaimer at the top
of the page. Downloads and use of any files provided here without any liability and
at your own risk. Files provided here should not be used without
competent professional examination by a licensed engineer. |
 |
|||||
HEM 100  | HEM 120 | HEM 140 | HEM 160 | HEM 180 | HEM 200 | HEM 220 |
HEM 240 | HEM 260 | HEM 280 | HEM 300 | HEM 320 | HEM 340 | HEM 360 |
HEM 400 | HEM 450 | HEM 500 | HEM 550 | HEM 600 | HEM 650 | HEM 700 |
HEM 800 | HEM 900 | HEM 1000 | ||||
All files were created carefully
but it is not possible to exclude all errors. |
||||||
