UPE Section

European standard U channels with parallel flanges.
Dimensions: DIN 1026-2: 2002
Tolerances: EN 10279: 2000
Surface Conditions: 10163-3

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

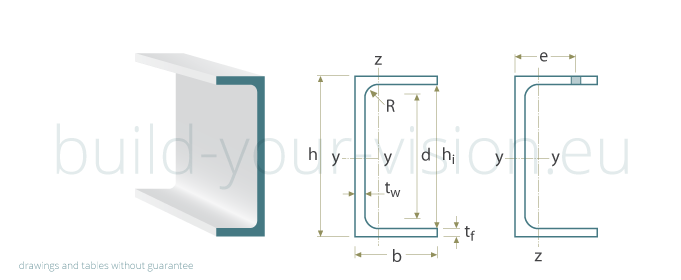

Designation	Nominal Weight 1m	Dimensions					Cross- section Area	Dimensions for Detailing					Surfaces
	W	h	b	t_w	t_f	R	A	h_i	d	∅	e_min	e_max	A_L	A_G
	kg/m	mm	mm	mm	mm	mm	cm²	mm	mm		mm	mm	m²/m	m²/t

UPE 80	7,9	80	50	4	7	10	10,1	66	46	-	-	-	0,343	43,45
UPE 100	9,82	100	55	4,5	7,5	10	12,5	85	65	M 12	35	36	0,402	41,0
UPE 120	12,1	120	60	5	8	12	15,4	104	80	M 12	35	41	0,460	37,98
UPE 140	14,5	140	65	5	9	12	18,4	122	98	M 16	35	38	0,520	35,95
UPE 160	17,0	160	70	5,5	9,5	12	21,7	141	117	M 16	36	43	0,579	34,01
UPE 180	19,7	180	75	5,5	10,5	12	25,1	159	135	M 16	36	48	0,639	32,4
UPE 200	22,8	200	80	6	11	13	29,0	178	152	M 20	46	47	0,697	30,6
UPE 220	26,6	220	85	6,5	12	13	33,9	196	170	M 22	47	49	0,756	28,43
UPE 240	30,2	240	90	7	12,5	15	38,5	215	185	M 24	47	51	0,813	26,89
UPE 270	35,2	270	95	7,5	13,5	15	44,8	243	213	M 27	48	50	0,892	25,34
UPE 300	44,4	300	100	9,5	15	15	56,6	270	240	M 27	50	55	0,968	21,78
UPE 330	53,2	330	105	11	16	18	67,8	298	262	M 27	54	60	1,043	19,6
UPE 360	61,2	360	110	12	17	18	77,9	326	290	M 27	55	65	1,121	18,32
UPE 400	72,2	400	115	13,5	18	18	91,9	364	328	M 27	57	70	1,218	16,87

UPE Section .dwg/.dxf files Before downloading please read our disclaimer at the top of the page. Downloads and use of any files provided here without any liability and at your own risk. Files provided here should not be used without competent professional examination by a licensed engineer. CAD files were created with nanoCAD 5.
UPE 80	UPE 100	UPE 120	UPE 140	UPE 160	UPE 180	UPE 200
UPE 220	UPE 240	UPE 270	UPE 300	UPE 330	UPE 360	UPE 400
All files were created carefully but it is not possible to exclude all errors. We would be grateful to you, if you inform us about mistakes you might have found. Thank you.
