EUEU-Sections (hot-rolled)



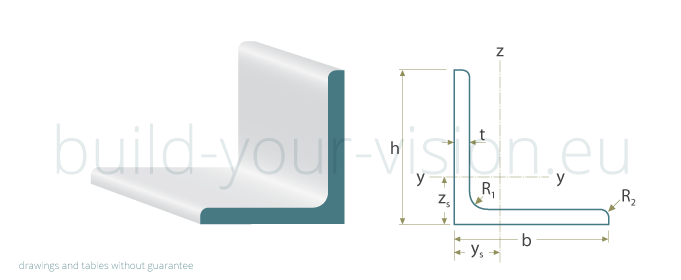

Equal Leg Angles

Dimensions: EN 10056-1: 1998
Tolerances: EN 10056-2: 1993

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

Designation Nominal Weight
1m		 Dimensions Surface
h x b x t W h = b t R1 R2 zs = ys A
  kg/m mm mm mm mm cm cm2

20 x 20 x 3 0,88 20 3 3,5 1,75 0,59 1,12

25 x 25 x 3 1,12 25 3 3,5 1,75 0,72 1,42
25 x 25 x 4 1,45 25 4 3,5 1,75 0,76 1,85

30 x 30 x 3 1,36 30 3 5 2,5 0,84 1,74
30 x 30 x 4 1,78 30 4 5 2,5 0,89 2,26

35 x 35 x 4 2,09 35 4 5 2,5 1,05 2,66

40 x 40 x 4 2,42 40 4 6 3,0 1,20 3,07
40 x 40 x 5 2,97 40 5 6 3,0 1,19 3,78

45 x 45 x 4,5 3,06 45 4,5 7 3,5 1,36 3,89

50 x 50 x 4 3,07 50 4 7 3,5 1,52 3,89
50 x 50 x 5 3,77 50 5 7 3,5 1,51 4,80
50 x 50 x 6 4,47 50 6 7 3,5 1,50 5,69

60 x 60 x 5 4,57 60 5 8 4,0 1,82 5,84
60 x 60 x 6 5,42 60 6 8 4,0 1,81 6,90
60 x 60 x 8 7,09 60 8 8 4,0 1,79 9,02

65 x 65 x 7 6,83 65 7 9 4,5 1,96 8,70

70 x 70 x 6 6,39 70 6 9 4,5 2,13 8,14
70 x 70 x 7 7,39 70 7 9 4,5 2,12 9,41

75 x 75 x 6 6,85 75 6 9 4,5 2,28 8,73
75 x 75 x 8 9,03 75 8 9 4,5 2,26 11,50

80 x 80 x 8 9,63 80 8 10 5,0 2,43 12,26
80 x 80 x 10 11,86 80 10 10 5,0 2,40 15,10

90 x 90 x 7 9,6 90 7 11 5,0 2,75 12,24
90 x 90 x 8 10,89 90 8 11 5,0 2,75 13,86
90 x 90 x 9 12,2 90 9 11 5,0 2,73 15,52
90 x 90 x 10 13,43 90 10 11 5,0 2,73 17,10

Designation Nominal Weight
1m		 Dimensions Surface
h x b x t   h = b t R1 R2 zs = ys A
  kg/m mm mm mm mm cm cm2

100 x 100 x 8 12,18 100 8 12 6,0 3,06 15,51
100 x 100 x 10 15,04 100 10 12 6,0 3,04 19,15
100 x 100 x 12 17,83 100 12 12 6,0 3,01 22,71

120 x 120 x 10 18,2 120 10 13 6,5 3,67 23,18
120 x 120 x 12 21,62 120 12 13 6,5 3,65 27,54

130 x 130 x 12 23,53 130 12 14 7,0 3,97 29,97

150 x 150 x 10 23,0 150 10 16 8,0 4,62 29,27
150 x 150 x 12 27,3 150 12 16 8,0 4,60 34,83
150 x 150 x 15 33,8 150 15 16 8,0 4,57 43,02

160 x 160 x 15 36,2 160 15 17 8,5 4,88 46,03

180 x 180 x 16 43,5 180 16 18 9,0 5,51 55,39
180 x 180 x 18 48,6 180 18 18 9,0 5,49 61,91

200 x 200 x 16 48,5 200 16 18 9,0 6,15 61,78
200 x 200 x 18 54,2 200 18 18 9,0 6,13 69,11
200 x 200 x 20 59,93 200 20 18 9,0 6,11 76,34
200 x 200 x 24 71,7 200 24 18 9,0 6,06 90,59

250 x 250 x 28 104 250 28 18 9,0 7,62 133
250 x 250 x 35 128 250 35 18 9,0 7,54 163



Equal Angle .dwg/.dxf files

Before downloading please read our disclaimer at the top of the page. Downloads and use of any files provided here without any liability and at your own risk. Files provided here should not be used without competent professional examination by a licensed engineer.
CAD files were created with nanoCAD 5.
Angles of the same dimension but different thickness (t) are put together into one .dwg/.dxf file.

20x20

t = 3

25x25

t = 3 / 4 / 5

30x30

t = 3 / 4 / 5

35x35

t = 3 / 3,5 / 4 / 5

40x40

t = 3 / 4 / 5 / 6

45x45

t = 3 / 4 / 4,5 / 5 / 6 / 7

50x50

t = 4 / 5 / 6 / 7 / 8 / 9

55x55

t = 5 / 6 / 8

60x60

t = 4 / 5 / 6 / 8 / 10

65x65

t = 6 / 7 / 8 / 9

70x70

t = 6 / 7 / 8 / 9 / 10

75x75

t = 6 / 7 / 8 / 10

80x80

t = 6 / 8 / 10

90x90

t = 6 / 7 / 8 / 9 / 10 / 11 / 12

100x100

t = 6 / 8 / 10 / 12

110x110

t = 8 / 10 / 12

120x120

t = 8 / 10 / 11 / 12 / 13 / 15

130x130

t = 12 / 14

140x140

t = 10 / 12 / 13 / 14

150x150

t = 10 / 12 / 14 / 15 / 18

160x160

t = 10 / 12 / 14 / 15 / 16 / 17

180x180

t = 12 / 14 / 16 / 18

200x200

t = 14 / 16 / 18 / 20 / 24

250x250

t = 25 / 28 / 32 / 35

All files were created carefully but it is not possible to exclude all errors.
We would be grateful to you, if you inform us about mistakes you might have found. Thank you.
