EUEU-Sections (hot-rolled)
Equal Flange Tees
Dimensions: EN 10055: 1995

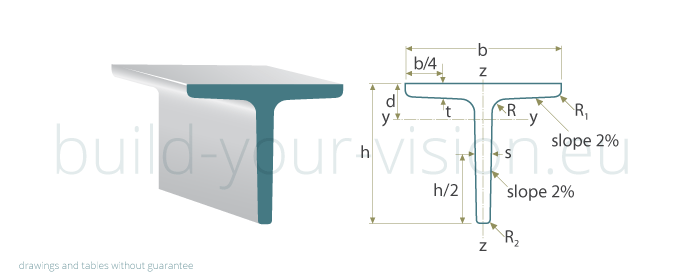

![](files/categories/sections_2016/t_with_slope_q.gif)
DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.
Designation | Nominal Weight 1m |
Dimensions | Area of Section |
Position of axis y-y |
|||||
G | h | b | s = t | R | R1 | R2 | A | d | |
kg/m | mm | mm | mm | mm | mm | mm | cm2 | cm | |
T 30 | 1,77 | 30 | 30 | 4,0 | 4,0 | 2,0 | 1,0 | 2,26 | 0,85 |
T 35 | 2,33 | 35 | 35 | 4,5 | 4,5 | 2,5 | 1,0 | 2,97 | 0,99 |
T 40 | 2,96 | 40 | 40 | 5,0 | 5,0 | 2,5 | 1,0 | 3,77 | 1,12 |
T 50 | 4,44 | 50 | 50 | 6,0 | 6,0 | 3,0 | 1,5 | 5,66 | 1,39 |
T 60 | 6,23 | 60 | 60 | 7,0 | 7,0 | 3,5 | 2,0 | 7,94 | 1,66 |
T 70 | 8,32 | 70 | 70 | 8,0 | 8,0 | 4,0 | 2,0 | 10,60 | 1,94 |
T 80 | 10,7 | 80 | 80 | 9,0 | 9,0 | 4,5 | 2,0 | 13,60 | 2,22 |
T 100 | 16,4 | 100 | 100 | 11,0 | 11,0 | 5,5 | 3,0 | 20,90 | 2,74 |
T 120 | 23,2 | 120 | 120 | 13,0 | 13,0 | 6,5 | 3,0 | 29,60 | 3,28 |
T 140 | 31,3 | 140 | 140 | 15,0 | 15,0 | 7,5 | 4,0 | 39,90 | 3,80 |
