EUEU-Sections (hot-rolled)
HD Wide Flange Columns

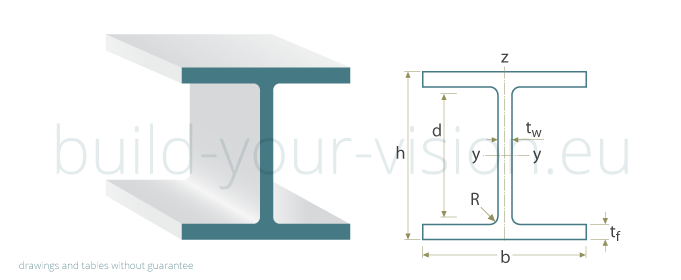

The following table represents European HD wide flange columns.
DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.
| Designation | Nominal Weight 1m |
Dimensions | Cross- section Area |
Dimension for Detailing | |||||
| W | h | b | tw | tf | R | A | hi | d | |
| kg/m | mm | mm | mm | mm | mm | cm2 | mm | mm | |
| HD 260 x 54,1 | 54,1 | 244 | 260 | 6,5 | 9,5 | 24 | 68,97 | 225,0 | 177,0 |
| HD 260 x 68,2 | 68,2 | 250 | 260 | 7,5 | 12,5 | 24 | 86,82 | 225,0 | 177,0 |
| HD 260 x 93 | 93,0 | 260 | 260 | 10,0 | 17,5 | 24 | 118,4 | 225,0 | 177,0 |
| HD 260 x 114 | 114,0 | 268 | 262 | 12,5 | 21,5 | 24 | 145,7 | 225,0 | 177,0 |
| HD 260 x 142 | 141,0 | 278 | 265 | 15,5 | 26,5 | 24 | 180,3 | 225,0 | 177,0 |
| HD 260 x 172 | 172,0 | 290 | 268 | 18,0 | 32,5 | 24 | 219,6 | 225,0 | 177,0 |
| HD 320 x 74,2 | 74,0 | 301 | 300 | 8,0 | 11,0 | 27 | 94,6 | 279,0 | 225,0 |
| HD 320 x 97,6 | 97,6 | 310 | 300 | 9,0 | 15,5 | 27 | 124,4 | 279,0 | 225,0 |
| HD 320 x 127 | 127,0 | 320 | 300 | 11,5 | 20,5 | 27 | 161,3 | 279,0 | 225,0 |
| HD 320 x 158 | 158,0 | 330 | 303 | 14,5 | 25,5 | 27 | 201,2 | 279,0 | 225,0 |
| HD 320 x 198 | 198,0 | 343 | 306 | 18,0 | 32,0 | 27 | 252,3 | 279,0 | 225,0 |
| HD 320 x 245 | 245,0 | 359 | 309 | 21,0 | 40,0 | 27 | 312,0 | 279,0 | 225,0 |
| HD 320 x 300 | 300,0 | 375 | 313 | 27,0 | 48,0 | 27 | 382,1 | 279,0 | 225,0 |
| HD 320 X 368 | 368,0 | 395 | 319 | 33,0 | 58,0 | 27 | 468,4 | 279,0 | 225,0 |
| HD 320 X451 | 451,0 | 419 | 326 | 40,0 | 70,0 | 27 | 574,3 | 279,0 | 225,0 |
| HD 360 x 134 | 134,0 | 356 | 369 | 11,2 | 18,0 | 15 | 170,6 | 320,0 | 290,0 |
| HD 360 x 147 | 147,5 | 360 | 370 | 12,3 | 19,8 | 15 | 187,9 | 320,4 | 290,0 |
| HD 360 x 162 | 162,0 | 364 | 371 | 13,3 | 21,8 | 15 | 206,3 | 320,4 | 290,0 |
| HD 360 x 179 | 179,0 | 368 | 373 | 15,0 | 23,9 | 15 | 228,3 | 320,2 | 290,0 |
| HD 360 x 196 | 196,5 | 372 | 374 | 16,4 | 26,2 | 15 | 250,3 | 319,6 | 290,0 |
| HD 400 x 187 | 186,5 | 368 | 391 | 15,0 | 24,0 | 15 | 237,6 | 320,0 | 290,0 |
| HD 400 x 216 | 216,3 | 375 | 394 | 17,3 | 27,7 | 15 | 275,5 | 319,6 | 290,0 |
| HD 400 x 237 | 236,0 | 380 | 395 | 18,9 | 30,2 | 15 | 300,9 | 319,6 | 290,0 |
| HD 400 x 262 | 263,0 | 387 | 398 | 21,1 | 33,3 | 15 | 334,6 | 320,4 | 290,0 |
| HD 400 x 287 | 287,5 | 393 | 399 | 22,6 | 36,6 | 15 | 366,3 | 319,8 | 290,0 |
| HD 400 x 314 | 314,0 | 399 | 401 | 24,9 | 39,6 | 15 | 399,2 | 319,8 | 290,0 |
| HD 400 x 347 | 347,0 | 407 | 404 | 27,2 | 43,7 | 15 | 442,0 | 319,6 | 290,0 |
| HD 400 x 382 | 382,0 | 416 | 406 | 29,8 | 48,0 | 15 | 487,1 | 320,0 | 290,0 |
| HD 400 x 421 | 421,0 | 425 | 409 | 32,8 | 52,6 | 15 | 537,1 | 319,8 | 290,0 |
| HD 400 x 463 | 463,0 | 435 | 412 | 35,8 | 57,4 | 15 | 589,5 | 320,2 | 290,0 |
| HD 400 x 509 | 509,0 | 446 | 416 | 39,1 | 62,7 | 15 | 649,0 | 320,6 | 290,0 |
| HD 400 x 551 | 551,0 | 455 | 418 | 42,0 | 67,6 | 15 | 701,4 | 319,8 | 290,0 |
| HD 400 x 592 | 592,0 | 465 | 421 | 45,0 | 72,3 | 15 | 754,9 | 320,4 | 290,0 |
| HD 400 x 634 | 634,0 | 474 | 424 | 47,6 | 77,1 | 15 | 808,0 | 319,8 | 290,0 |
| HD 400 x 677 | 677,0 | 483 | 428 | 51,2 | 81,5 | 15 | 863,4 | 320,0 | 290,0 |
| HD 400 x 744 | 744,0 | 498 | 432 | 55,6 | 88,9 | 15 | 948,1 | 320,2 | 290,0 |
| HD 400 x 818 | 819,0 | 514 | 437 | 60,5 | 97,0 | 15 | 1043 | 320,0 | 290,0 |
| HD 400 x 900 | 902,0 | 531 | 442 | 65,9 | 106,0 | 15 | 1149 | 319,0 | 290,0 |
| HD 400 x 990 | 991,0 | 550 | 448 | 71,9 | 115,0 | 15 | 1262 | 320,0 | 290,0 |
| HD 400 x 1086 | 1086,0 | 569 | 454 | 78,0 | 125,0 | 15 | 1386 | 319,0 | 290,0 |
