EUEU-Sections (hot-rolled)



Unequal Leg Angles

Dimensions: EN 10056-1: 1998
Tolerances: EN 10056-2: 1993

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

Designation Nominal Weight
1m		 Dimensions Surface

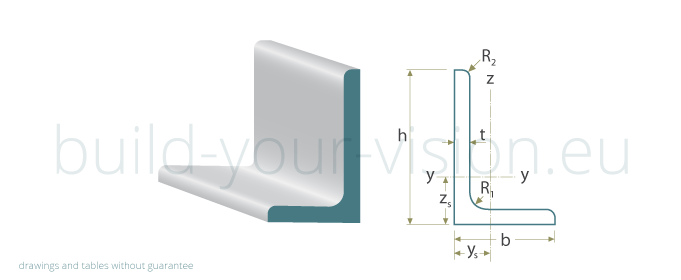

h x b x t W h b t R1 R2 zs ys A
  kg/m mm mm mm mm mm cm cm cm2

30 x 20 x 3 1,12 30 20 3,0 4,0 2,0 0,99 0,502 1,43
30 x 20 x 4 1,46 30 20 4,0 4,0 2,0 1,03 0,541 1,86

40 x 20 x 4 1,77 40 20 4,0 4,0 2,0 1,47 0,481 2,26
40 x 25 x 4 1,93 40 25 4,0 4,0 2,0 1,36 0,620 2,46

45 x 30 x 4 2,25 45 30 4,0 4,5 2,3 1,48 0,739 2,86

50 x 30 x 5 2,96 50 30 5,0 5,0 2,5 1,73 0,741 3,78

60 x 30 x 5 3,37 60 30 5,0 6,0 3,0 2,15 0,680 4,29
60 x 40 x 5 3,76 60 40 5,0 6,0 3,0 1,96 0,972 4,79
60 x 40 x 6 4,46 60 40 6,0 6,0 3,0 2,00 1,010 5,68

65 x 50 x 5 4,35 65 50 5,0 6,0 3,0 1,99 1,250 5,54

70 x 50 x 6 5,41 70 50 6,0 7,0 3,5 2,23 1,250 6,89

75 x 50 x 6 5,65 75 50 6,0 7,0 3,5 2,44 1,210 7,19
75 x 50 x 8 7,39 75 50 8,0 7,0 3,5 2,52 1,290 9,41

80 x 40 x 6 5,41 80 40 6,0 7,0 3,5 2,85 0,884 6,89
80 x 40 x 8 7,07 80 40 8,0 7,0 3,5 2,94 0,963 9,01
80 x 60 x 7 7,36 80 60 7,0 8,0 4,0 2,51 1,52 9,38

Designation Nominal Weight
1m		 Dimensions Surface
h x b x t   h b t R1 R2 zs ys A
  kg/m mm mm mm mm mm cm cm cm2

100 x 50 x 6 6,84 100 50 6,0 8,0 4,0 3,51 1,05 8,71
100 x 50 x 8 8,97 100 50 8,0 8,0 4,0 3,60 1,13 11,4
100 x 65 x 7 8,77 100 65 7,0 10,0 5,0 3,23 1,51 11,2
100 x 65 x 8 9,94 100 65 8,0 10,0 5,0 3,27 1,55 12,7
100 x 65 x 10 12,3 100 65 10,0 10,0 5,0 3,36 1,63 15,6
100 x 75 x 8 10,6 100 75 8,0 10,0 5,0 3,10 1,87 13,5
100 x 75 x 10 13,0 100 75 10,0 10,0 5,0 3,19 1,95 16,6
100 x 75 x 12 15,4 100 75 12,0 10,0 5,0 3,27 2,03 19,7

120 x 80 x 8 12,2 120 80 8,0 11,0 5,5 3,83 1,87 15,5
120 x 80 x 10 15,0 120 80 10,0 11,0 5,5 3,92 1,95 19,1
120 x 80 x 12 17,8 120 80 12,0 11,0 5,5 4,00 2,03 22,7

125 x 75 x 8 12,2 125 75 8,0 11,0 5,5 4,14 1,68 15,5
125 x 75 x 10 15,0 125 75 10,0 11,0 5,5 4,23 1,76 19,1
125 x 75 x 12 17,8 125 75 12,0 11,0 5,5 4,31 1,84 22,7

135 x 65 x 8 12,2 135 65 8,0 11,0 5,5 4,78 1,34 15,5
135 x 65 x 10 15,0 135 65 10,0 11,0 5,5 4,88 1,42 19,1

150 x 75 x 9 15,4 150 75 9,0 12,0 6,0 5,26 1,57 19,6
150 x 75 x 10 17,0 150 75 10,0 11,0 5,5 5,32 1,61 21,6
150 x 75 x 12 20,2 150 75 12,0 11,0 5,5 5,41 1,69 25,7
150 x 75 x 15 24,8 150 75 15,0 11,0 5,5 5,53 1,81 31,6
150 x 90 x 10 18,2 150 90 10,0 12,0 6,0 5,00 2,04 23,2
150 x 90 x 12 21,6 150 90 12,0 12,0 6,0 5,08 2,12 27,5
150 x 90 x 15 26,6 150 90 15,0 12,0 6,0 5,21 2,23 33,9
150 x 100 x 10 19,0 150 100 10,0 12,0 6,0 4,81 2,34 24,2
150 x 100 x 12 22,5 150 100 12,0 12,0 6,0 4,90 2,42 28,7

200 x 100 x 10 23,0 200 100 10,0 15,0 7,5 6,93 2,01 29,2
200 x 100 x 12 27,3 200 100 12,0 15,0 7,5 7,03 2,10 34,8
200 x 100 x 15 33,7 200 100 15,0 15,0 7,5 7,16 2,22 43,0
200 x 150 x 12 32,0 200 150 12,0 15,0 7,5 6,08 3,61 40,8
200 x 150 x 15 39,6 200 150 15,0 15,0 7,5 6,21 3,73 50,5




Unequal Angle .dwg/.dxf files

Before downloading please read our disclaimer at the top of the page. Downloads and use of any files provided here without any liability and at your own risk. Files provided here should not be used without competent professional examination by a licensed engineer.
CAD files were created with nanoCAD 5.
Angles of the same dimension but different thickness (t) are put together into one .dwg/.dxf file.

30 x 20

t = 3 / 4

40 x 20

t = 4

40 x 25

t = 4

45 x 30

t = 4

50 x 30

t = 5

60 x 30

t = 5

60 x 40

t = 5 / 6

65 x 50

t = 5

70 x 50

t = 6

75 x 50

t = 6 / 8

80 x 40

t = 6 / 8

80 x 60

t = 7

100 x 50

t = 6 / 8

100 x 65

t = 7 / 8 / 10

100 x 75

t = 8 / 10 / 12

120 x 80

t = 8 / 10 / 12

125 x 75

t = 8 / 10 / 12

135 x 65

t = 8 / 10

150 x 75

t = 9 / 10 / 12 / 15

150 x 90

t = 10 / 12 / 15

150 x 100

t = 10 / 12

200 x 100

t = 10 / 12 / 15

200 x 150

t = 12 / 15

All files were created carefully but it is not possible to exclude all errors.
We would be grateful to you, if you inform us about mistakes you might have found. Thank you.
