SHS Square Hollow Sections (hot-finished)

The manufacturing of hot finished structural hollow sections is regulated by
European standard EN 10210-2 for Dimensions and Tolerances

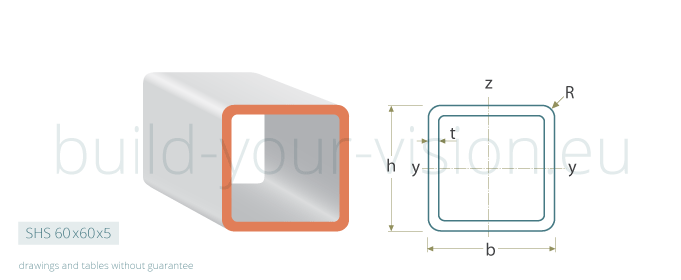

The external corner profile (R) is defined as    R [max.] = 3 x t  at each corner.

rhs square hollow section hot-finishing

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.



SHS Square Hollow Sections (hot-finished)
.dwg/.dxf files

Before downloading please read our disclaimer at the top of the page. Downloads and use of any files provided here without any liability and at your own risk. Files provided here should not be used without competent professional examination by a licensed engineer.
CAD files were created with nanoCAD 5.Sections of the same dimension but different thickness (t) are put together into one .dwg/.dxf file. The outside radius (R) is calculated as R = 2 x t

40x40

t = 2,6 / 3,2 / 4 / 5

50x50

t = 2,6 / 3,2 / 4 / 5 / 6,3

60x60

t = 2,6 / 3,2 / 4 / 5 / 6,3 / 8

70x70

t = 3,2 / 4 / 5 / 6,3 / 8

80x80

t = 3,2 / 4 / 5 / 6,3 / 8

90x90

t = 4 / 5 / 6,3 / 8

100x100

t = 4 / 5 / 6,3 / 8 / 10

120x120

t = 5 / 6,3 / 8 / 10 / 12,5

140x140

t = 5 / 6,3 / 8 / 10 / 12,5

150x150

t = 5 / 6,3 / 8 / 10 / 12,5 / 14,2 / 16

160x160

t = 5 / 6,3 / 8 / 10 / 12,5 / 14,2 / 16

180x180

t = 5 / 6,3 / 8 / 10 / 12,5 / 14,2 / 16

200x200

t = 5 / 6,3 / 8 / 10 / 12,5 / 14,2 / 16

250x250

t = 6,3 / 8 / 10 / 12,5 / 14,2 / 16

300x300

t = 6,3 / 8 / 10 / 12,5 / 14,2 / 16

350x350

t = 8 / 10 / 12,5 / 14,2 / 16

400x400

t = 10 / 12,5 / 14,2 / 16 / 20

All files were created carefully but it is not possible to exclude all errors.
We would be grateful to you, if you inform us about mistakes you might have found. Thank you.
